HUAYU3000L-2 Blow Moulding Machine for Industrial Plastic Production

Name: HUAYU3000L2 Blow Moulding Machine for Industrial Plastic Production
Brand: HUAYU
Price: 31000 USD

China HUAYU3000L-2 Blow Moulding Machine for Industrial Plastic Production wholesale

Brand Name : HUAYU

Model Number : HY3000-2

Certification : ISO9001, CE

Place of Origin : CHINA

MOQ : 1SET

Price : 31000 USD

Payment Terms : L/C,T/T

Supply Ability : 1 SET 120 DAYS

Delivery Time : 4 MONTHS

Packaging Details : be disassembled into many parts for container transportation

Screw Material : 38CrMoAlA，Nitriding

Heating Zones : 6

Distance Between Platens : 1400-3800mm

Air Pressure : 0.8MPa

Total Power : 775.5kw

Year : 2024

Condition : New

Layer : 1 layer

Hopper Material : stainless steel

Blow Molding Type : Extrusion Blow Molding

Cooling Water Pressure : 0.3-0.6MPa

Cleaning Method : Easy cleaning

Machinery Test Report : Provided

Voltage Range : 220V/380V/415V/440V

Maximum Air Pressure : 0.8Mpa

Contact Now

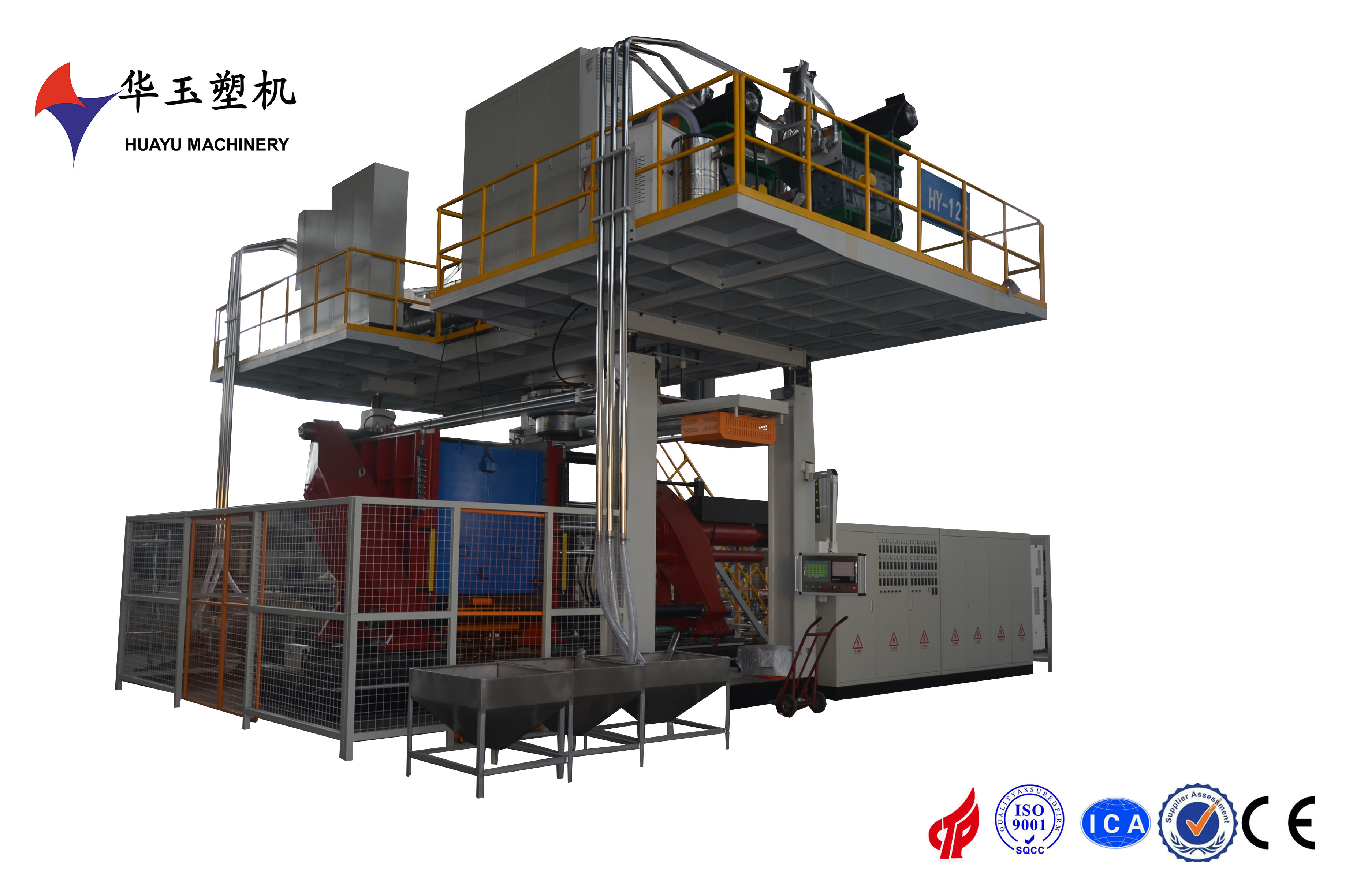

The HUAYU3000L-2 Blow Moulding Machine combines cutting-edge technology with a user-friendly interface. Its high-speed production and energy-saving features make it perfect for industrial applications, delivering high output with consistent product quality and uniform wall thickness.

Auto Feeder
hopper material	stainless steel	Stable performance, easy maintenance
feeding type	弹簧上料spring loaded
feeding motor	1.5/1.5kw
Extrusion System
Screw diameter	130/130/mm	Nitrided 38CrMoAIA
Screw L/D ratio	28:1	special designed screw can ensure the material plasticizing uniform and efficient
Extruder motor	110/110kw
Reducer	375/375	Best quality brand in china ,long life and low noise
Screw heating power	5.5kw*12
Plasticizing capacity	800kg/h
