HUAYU3000L-1 Blow Moulding Machine for Large Plastic Products

Name: HUAYU3000L1 Blow Moulding Machine for Large Plastic Products
Brand: HUAYU
Price: 260000 USD

China HUAYU3000L-1 Blow Moulding Machine for Large Plastic Products wholesale

Brand Name : HUAYU

Model Number : HYBM3001

Certification : ISO9001, CE

Place of Origin : CHINA

MOQ : 1 SET

Price : 260000 USD

Payment Terms : T/T,L/C

Supply Ability : 1SET 120DAYS

Delivery Time : 4 MONTHS

Packaging Details : be disassembled into many parts for container transportation

Maximum Air Pressure : 0.8Mpa

Accumulator Capacity : 30KG

Layer : 3 Layers

After Sales : OVERSEAS SERVICE

Max. Output : 10-15 pcs/hour

Machine Dimensions : 10*5.5*7m

Durability : Excellent

Power Supply : 380V/50Hz

Controller : PLC+Touch Screen

Productivity : 10-24pcs/h

Platen : 1700*1800MM

Output : 20PCS/h

Plastic Processed : HDPE、PE

Air Consumption : 1.5m3/min

Control System : PLC

Contact Now

The HUAYU3000L-1 Blow Moulding Machine features advanced automation, making it ideal for manufacturing large plastic products. It ensures high precision and consistent product quality, with energy-efficient technology reducing operational costs significantly.

Extrusion System
Screw diameter	150mm	Nitrided 38CrMoAIA
Screw L/D ratio	28:1	special designed screw can ensure the material plasticizing uniform and efficient
Extruder motor	132kw
Reducer	420	Best quality brand in china ,long life and low noise
Screw heating power	5.5kw*12
Plasticizing capacity	500kg/h
die head
Accumulator capacity	90kg	designed by ourselves and get the patent
Die diameter	According to products
Die head heating power	80kw

HUAYU3000L-1 Blow Moulding Machine for Large Plastic Products

Product Tags:

large plastic blow moulding machine

water tank blow moulding equipment

HUAYU3000L-1 blow moulding machine

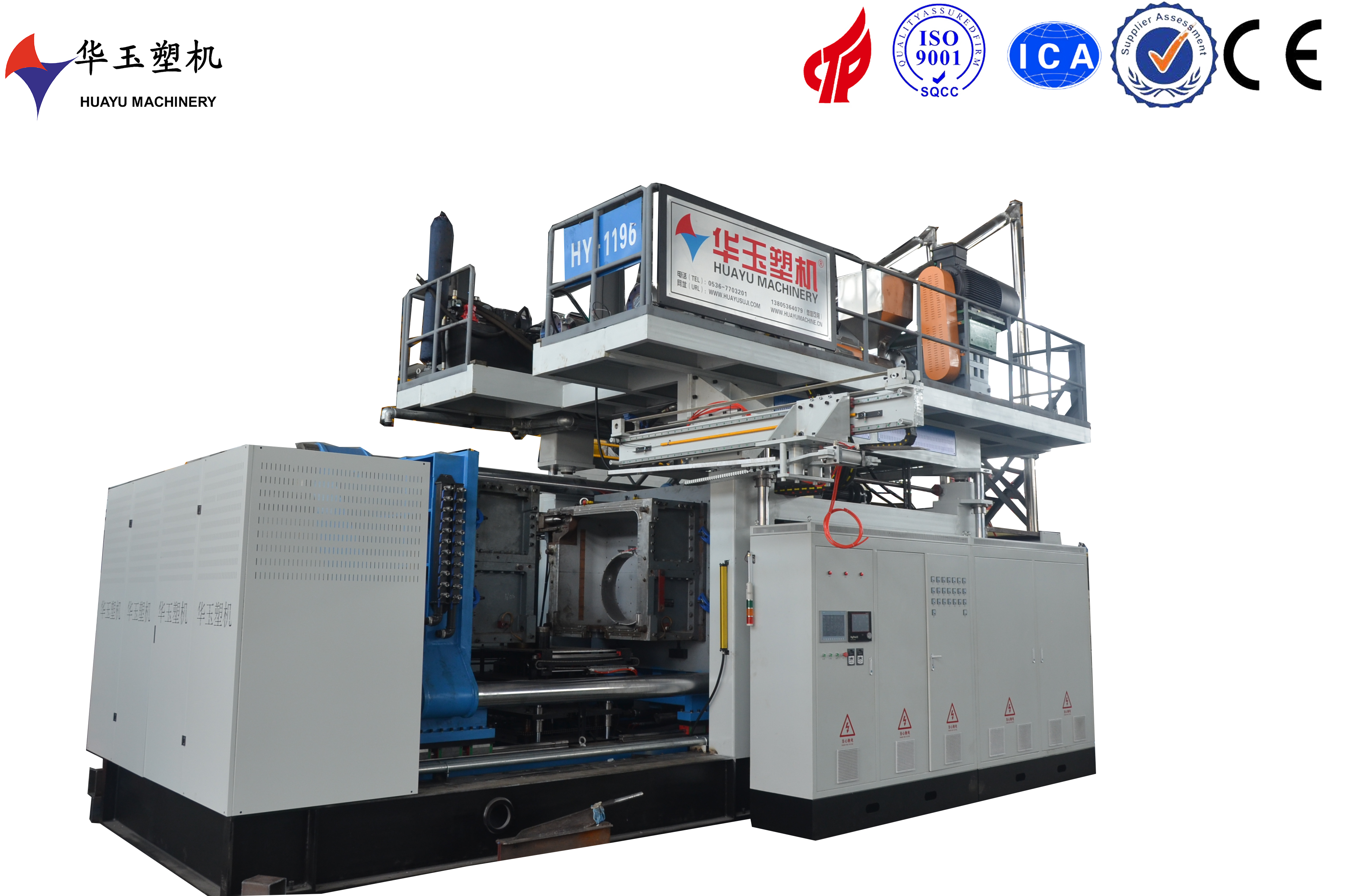

HUAYU3000L-1 Blow Moulding Machine for Large Plastic Products Images
