220L 3Layer Blow Moulding Machine for Large Plastic Drums

Name: 220L 3Layer Blow Moulding Machine for Large Plastic Drums
Brand: HUAYU
Price: 280000 USD

China 220L 3Layer Blow Moulding Machine for Large Plastic Drums wholesale

Brand Name : HUAYU

Model Number : HYBM220-3

Certification : ISO9001, CE

Place of Origin : CHINA

MOQ : 1 SET

Price : 280000 USD

Payment Terms : T/T,L/C

Supply Ability : 1SET 120DAYS

Delivery Time : 4 MONTHS

Packaging Details : be disassembled into many parts for container transportation

Clamping Force : 100 KN

Layer : 1-10layers

Average Consumption : 130kw

Corrosion : Excellent

Hollow Part Volume : 220L

Cooling Zones : 1

Warranty : 1 Year

Application : Jerry can, Drum, Tank

Condition : New

Material : HDPE/PP

Production Speed : 10-15 pcs/hour

Automation : Automatic

Extruder Motor : 132kw

Hopper Material : stainless steel

Feeding Motor : 5.5kw

Contact Now

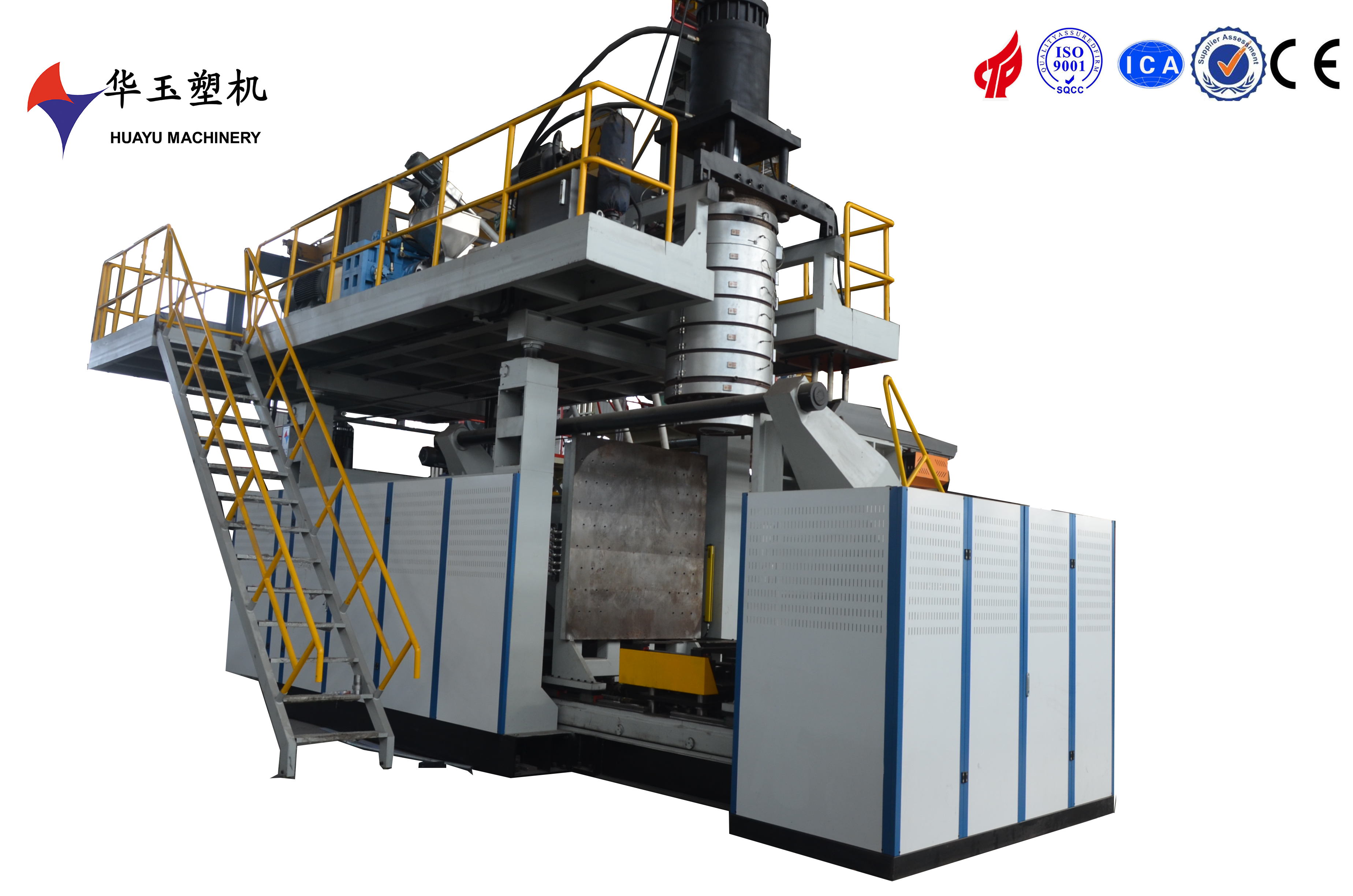

The HUAYU220L-3 Blow Moulding Machine is designed for precision manufacturing of large plastic drums. It features advanced automation and energy-efficient technology, ensuring consistent product quality and uniform wall thickness, with a durable construction guaranteeing long-term reliability.

Extrusion System
Screw diameter	90/100/90mm	Nitrided 38CrMoAIA
Screw L/D ratio	30:1	special designed screw can ensure the material plasticizing uniform and efficient
Extruder motor	55/75/55kw
Reducer	Guomao 2502/2801	Best quality brand in china ,long life and low noise
Screw heating power	4kw*12
Plasticizing capacity	350kg/h
Die head
Accumulator capacity	20kg	designed by ourselves and get the patent
Die diameter	Max 300mm
Die head heating power	50kw
Clamping System
platen size	14001500(WH)	smooth running, no noise; the clamping force is big
clamping cylinder	230 120*2
clamping cylinder stroke	1000mm
clamping force	1200KN
distance between platens	900-2300mm
寸max. mould size	12001500mm(WH)
